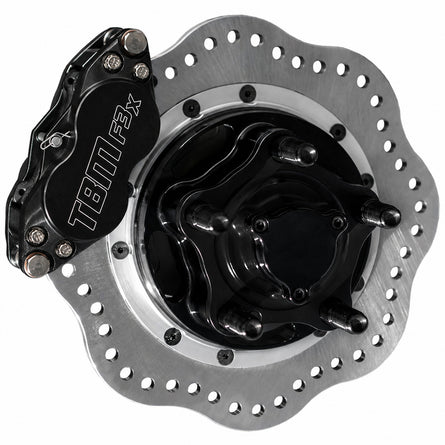

(X-Series) TBM Brakes Strange Floater Rear F3X 4 Piston Drag Brake Kit

Lighter. Stronger. Smarter. Built for Ultimate Performance.

TBM’s brand-new X-Series Drag Brakes represent the latest update and addition to a legacy of industry-leading stopping power. Designed for racers who demand unmatched performance and stopping power paired with minimal weight, the X-Series brings a new look, even more weight savings, and more. These new brake kits come with all components black anodized throughout and will continue to be paired with our Revolution steel top fuel alloy rotors as well as new carbon rotor offering.

Precision-Engineered Calipers for Maximum Strength

The DR1X, F1X, and F3X calipers launch this new platform with a full 7075 billet Aluminum construction. This material delivers exceptional strength and durability that meet the high strength and performance standards TBM customers expect from our traditional forged calipers. Every X-series caliper is finished with our proprietary hard coat black anodizing process for a sleek, ultra-durable true-black appearance.

All-New High-Performance Brake Pad Compound

After more than a year of testing across nearly every drag-racing discipline, we’re proud to introduce our newest pad compound. Racers consistently report:

• Better high-temperature performance than our best-selling #1 compound

• Similar pedal feel and stopping power to #1 compound

• Dramatically longer pad life thanks to an elevated thermal ceiling and normal operating temperature wear characteristics.


Each pad is now built on a true pin-retained backing plate, ensuring secure, consistent performance run after run.

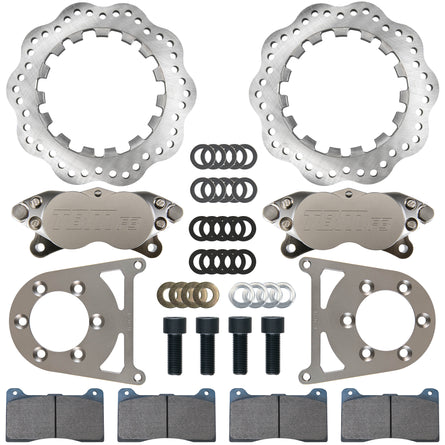

Included in this kit:

• (2) F3 Calipers 002-0056XAP-1 / 002-0056XAP-2
• (2) 11.500"x.375 rotors 3-1150375STRANGE
• #96 Compound Brake Pads 6-000296

• (2) caliper mounting brackets 16-0241
• Mounting Hardware Kit 011-0187


For custom bolt pattern please contact us directly, otherwise OE factory bolt pattern will be issued.

Kit Weight: 18.5 LBS

Note: Strange Carbon Floater Hubs will need to buy (2) C1700H (Retainer Ring)

Pre 2012 Strange Floater Rear Brakes will need to buy the following items from strange to convert to post 2012 Floater assembly to allow our brakes to work

• Strange F3100C (FFAA Carbon Rotor Adapter)
• Strange C1700H (Retainer Ring)
• Strange C1700D (20 1/4-20 x 1/2” FHSCS)

*Please use red Loctite on all rotor bolts*

Installation Instructions

We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.

TBM Rear Drag Brakes are specifically designed to have maximum clearance for 15" double beadlocks offering best in class clearance they clear nearly every beadlock on the market. Use this reference diagram for clearance concerns.
