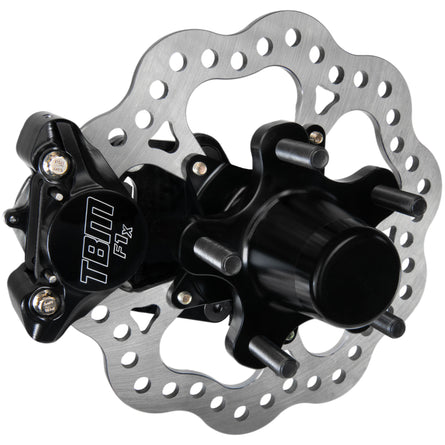

X-Series Racecraft 300102 / 300100 / 300111 / 300117 Front Drag Racing Brakes 5 on 4.50 (w/ New Aluminum Hub)

TBM’s brand-new X-Series Drag Brakes represent the latest update and addition to a legacy of industry-leading stopping power. Designed for racers who demand unmatched performance and stopping power paired with minimal weight, the X-Series brings a new look, even more weight savings, and more. These new brake kits come with all components black anodized throughout and will continue to be paired with our Revolution steel top fuel alloy rotors as well as new carbon rotor offering.

Precision-Engineered Calipers for Maximum Strength

The DR1X, F1X, and F3X calipers launch this new platform with a full 7075 billet Aluminum construction. This material delivers exceptional strength and durability that meet the high strength and performance standards TBM customers expect from our traditional forged calipers. Every X-series caliper is finished with our proprietary hard coat black anodizing process for a sleek, ultra-durable true-black appearance.

All-New High-Performance Brake Pad Compound

After more than a year of testing across nearly every drag-racing discipline, we’re proud to introduce our newest pad compound. Racers consistently report:

• Better high-temperature performance than our best-selling #1 compound

• Similar pedal feel and stopping power to #1 compound

• Dramatically longer pad life thanks to an elevated thermal ceiling and normal operating temperature wear characteristics.


Each pad is now built on a true pin-retained backing plate, ensuring secure, consistent performance run after run.

This front brake kit mounts to a Racecraft 300102 / 300100 / 300111 / 300117 style spindle.

Included in this kit:

• Billet F1X 2 piston calipers 002-0054XAP-1 / 002-0054XAP-2
• #96 Compound Brake Pads 6-006496
• 10.75 x .280 steel revolution rotors 3-10753105525D
• Aluminum caliper mounting brackets 16-0206-1 / 16-0206-2
• Billet Aluminum Hub (008-101-BL)

• Timken bearing, races and seals
• 1/2 -20” wheel studs
• Mounting Hardware Kit 011-0206


Kit weight: 17.8 lbs

Wheel Speed Sensor Kit

For custom bolt pattern please contact us directly, otherwise OE factory bolt pattern will be issued.

TBM 2 Piston (F1/DR-1) Front Drag Racing Brake Kits are extremely lightweight and are not suitable for use with factory rear brakes/proportioning. They must be used with a properly installed aftermarket-style 4 piston rear brake kit.

 This kit fits:

• 87-93 Mustang w/ V8 spindles 5 lug
• 87-88 Thunderbird 4 cylinder spindles 5 lug
• Racecraft 300102 / 300100 / 300111 / 300117

Installation Instructions

We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.
