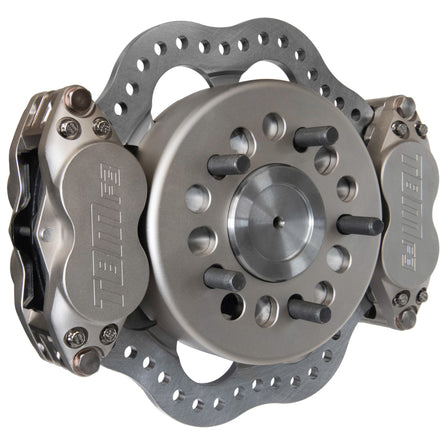

Sportsman HD (Symmetrical w/ 3.350 Bearing Diameter Housing Ends) F3 4 piston Drag Brake Kit

Years of development and refinement through our own racing programs and working with the top bracket and sportsman cars on the planet have brought this new kit to market. The new Sportsman HD brake system is a series of refinements on a classic to withstand the abuse of bracket racing. It is no secret that the fast paced nature and the speeds today's bracket cars inflict on a braking system create tremendous heat and wear, so we set out to create something up to the job.

F3 Calipers

Featuring our strongest in class F3 caliper that delivers unrivaled clamping force and stopping power and never wears out. These calipers provide the no drag design that made TBM so famous.

Rotors

Our new revolution rotor designed for our HD and Top Dragster Kits offers a new proprietary steel alloy and architecture to provide better heat control while still coming in as one of the lightest and most capable rotors on the planet.

Brake Pads

Our Sportsman HD and Top Dragster kits utilize our newest #96 brake pad compound developed over the last several years of intense durability testing. This pad is specifically designed to deliver the same stopping performance of our previous pads, while being able to better handle elevated operating temperature and also improving wear life significantly

Rear Brake Instructions: Click Here

Made for 2.832" Axle Offset

TBM Brakes afford racers one of the lightest and highest performing brake setup on the market. These brakes have proven themselves in every realm from Top Fuel Dragsters to Hot Rod Drag Week and everything in between. TBM is quickly becoming the winning edge in brake system design. With a revolutionary design TBM Brakes has lower drag and friction than competitors. Lower rolling resistance means quicker ET and better overall performance as well as longer pad life.

Kit Weight: 24 lbs

Please note: For weight savings and ability to change/adapt to combinations we incorporated all of the following bolt patterns into one hat.

Bolt Patterns Included

• 5x4.50 1/2" Stud (Ford/Mopar)
• 5x4.50 5/8" Stud (Ford/Mopar)
• 5x4.75 1/2" Stud (GM)
• 5x4.75 5/8" Stud (GM)
• 5x5 5/8" Stud

Included in this kit:

• (2) F3 Calipers 002-0192ALP-1 / 002-0192ALP-2
• (2) 11.500"x.500 rotors 3-1150500D-HD
• (1) Set pads 6-000296 # 96 Compound

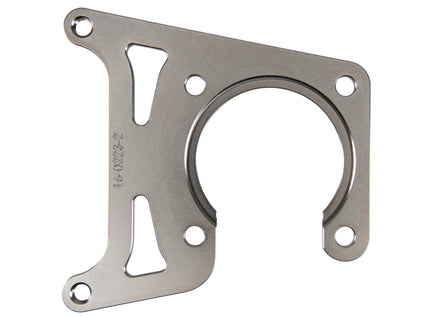

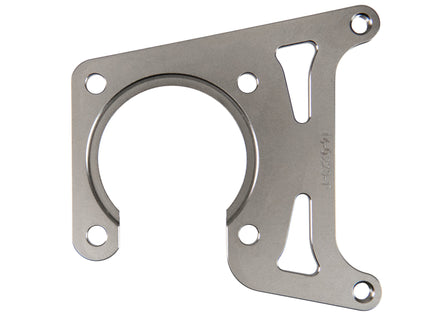

• (2) Caliper mounting brackets 16-0223-1 / 16-0223-2
• (2) Hats 204-0214
• Mounting hardware kit 011-0187
