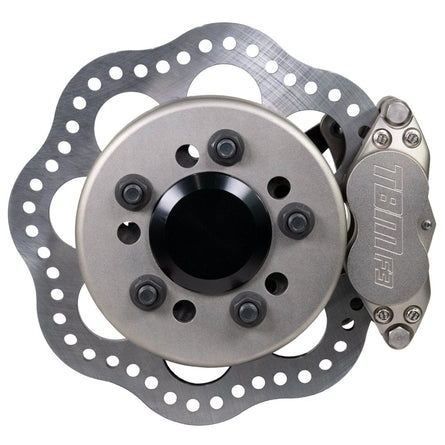

Rear Drag Brake Kit F3 Calipers (GM 10/12 Bolt Housing End w/ C-Clip Eliminator)
SALE
TBM Brakes
003-0222B3-1
Racing Use Only, Not Legal for Road Use
$1,479.00
more than 10 items left
Please select all options
TBM Brakes Rear Drag Brake Kit F3 Calipers (GM 10/12 Bolt w/ C-Clip Eliminator) 003-0222B3-1
Rear Brake Instructions: Click Here
TBM Brakes afford racers one of the lightest and highest performing brake setup on the market. These brakes have proven themselves in every realm from Top Fuel Dragsters to Hot Rod Drag Week and everything in between. TBM is quickly becoming the winning edge in brake system design. With a revolutionary design TBM Brakes has lower drag and friction than competitors. Lower rolling resistance means quicker ET and better overall performance as well as longer pad life.

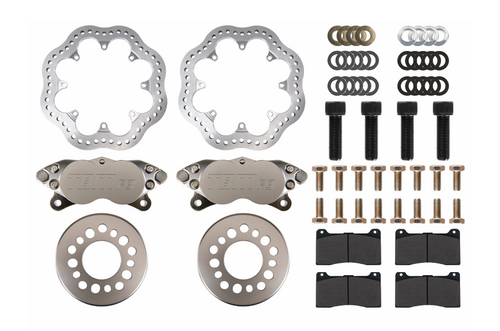

Included in this kit:
- (2) F3 Calipers 002-0056SSP-1 / 002-0056SSP-2
- (2) 11.500"x.375 rotors 3-1150375D
- (2) sets pads #1 compound low temp track pads 6-0102W
- (2) Caliper mounting brackets 16-0221-1-CCE / 16-0221-2-CCE
- (2) Hats 204-0214
- Mounting hardware kit 011-0187
Rear Brake Instructions: Click Here
*Please use red Loctite on all rotor bolts*
We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.

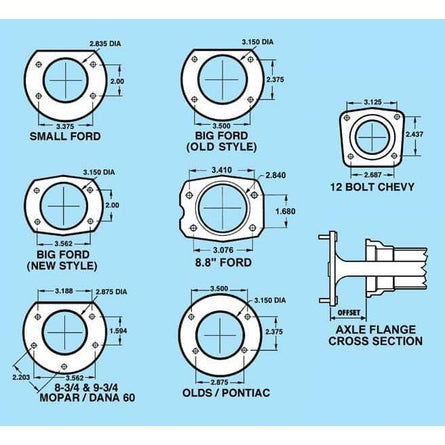

TBM Rear Drag Brakes are specifically designed to have maximum clearance for 15" double beadlocks offering best in class clearance they clear nearly every beadlock on the market. Use this reference diagram for clearance concerns.
