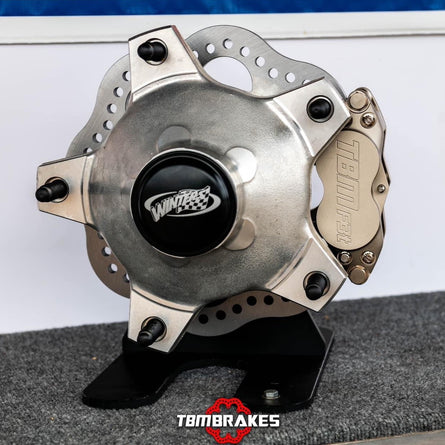

Crate Late Model Front & Rear Brake Package for .810" Leading (Front) Mount Spindles

SALE

TBM Brakes

004-001L

Racing Use Only, Not Legal for Road Use

$2,799.00

more than 10 items left

Starting at $263 /mo with
View full details

Crate Late Model Front & Rear Brake Package for .810" Leading (Front) Mount Spindles 004-001L

*This kit includes front calipers configured to fit on spindles that have the caliper mounts on the leading/front side of the front spindles.

TBM Brakes Dirt Late Model packages help eliminate caliper drag, put more power to the ground, and increases corner and exit speeds.

TBM Brakes Crate Late Model package comes with our industry leading F3 calipers. Made up of forged aluminum housings and hardened steel center sections. Symmetrical 1.75” piston bores for the rear and left front. 1.38” piston bores for the right front to reduce RF braking by 38%. O-ring piston seals to optimize piston retraction. Electroless Nickel Plated components for internal performance and external protective properties. Modular design simplifies impact repair and reduces the amount of spares needed. Same caliper can be used with .810”, .500”, or .375” thick rotors. Individual caliper loaded with pads weighs 5 lbs.

As the originators of the convoluted rotor, we include our 11.75” x .375” steel Revolution Rotor in this package. Our proprietary blend of design, material, and processing results in a rotor that is unmatched in the industry for its size. Coming in at 3.75 lbs, these rotors provide significant savings in un-sprung rotating weight while not sacrificing brake torque.

Rounding out our Crate Late Model package, we include our #2 brake pad compound for the front and our #1 brake pad compound for the rear. The difference in Coefficient of Friction yields 10% more brake torque at the rear of the car.

Kit Includes:

  • Left Front F3 Brake Caliper w/ 4.80 Piston Area (002-0135SSP-2)
  • Right Front F3 Brake Caliper w/ 2.99 Piston Area (002-0139SSP-1)
  • Left Rear F3 Brake Caliper w/ 4.80 Piston Area (002-0135SSP-1)
  • Right Rear F3 Brake Caliper w/ 4.80 Piston Area (002-0135SSP-2)
  • Front Brake Pads #2 Compound (6-0202WT)
  • Rear Brake Pads #1 Compound (6-0102WT)
  • 11.75 x .375 rotors (3.75 lbs) for all four corners (3-1175375D)
  • Inboard Brake Pad Spacers To Run .375" Rotors (6-0002-38)
