2011-24 F-150 2WD/4WD F3 Medium Duty Front Drag Racing Brakes 6 lug 001-0329-1
SALE
TBM Brakes
001-0329-1
Racing Use Only, Not Legal for Road Use
$1,599.00
more than 10 items left
Please select all options
2011-2024 F-150 2WD/4WD F3 Medium Duty Front Drag Racing Brakes 6 lug 001-0329-1

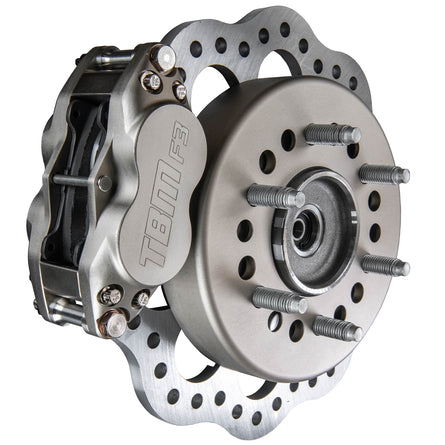

TBM Brakes Medium Duty 4 piston F150 drag racing brakes are designed to deliver ultimate stopping power combined with huge weight savings and durability. Thanks to unmatched F3 4 piston caliper stopping power and a 12" revolution rotor, you will have equal or increased stopping power compared to your factory brakes without carrying the weight.
Instructions: Click Here
Front Brake Lines: 11-20 Click Here / 21-24 Click Here
Dual Line Lock Kit: 11-20 Click Here / 21-24 Click Here
Factory brake weight (both sides): 94.7lbs
TBM Brake weight (both sides): 28lbs
This kit saves over 66lbs
This kit fits the following:
- 2011-2023 F150 2WD
- 2011-2023 F150 4WD
Note: This Kit Reuses Factory Hubs with 14mm wheel studs
Note: These only work with 17" or larger wheels
Note: We do not recommend using with ABS as it can create unpredictable bias per corner which can cause heat control issues.

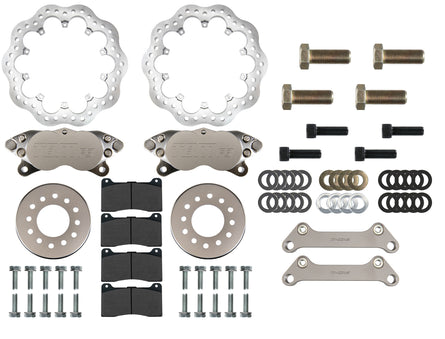

Kit includes:
- F3 4 piston calipers 002-0192SSP-1 / 002-0192SSP-2
- #1 standard track pads 6-0102W

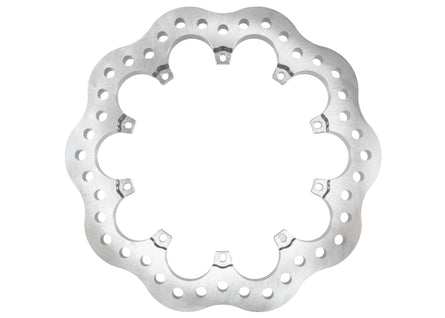

- (2) 12.50 x .500” thermally treated revolution rotors
- (2) Aluminum rotor hats 204-0226

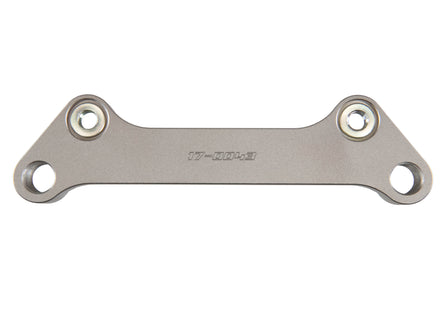

- (2) Aluminum caliper mounting bracket 17-0043
- Hardware kit
- Kit Weight 26.7 LBS
Installation of this kit will require 3AN lines that are sold separately
We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.
*Please use red Loctite on all rotor bolts*
