1999-18 Silverado 5x4.75 lug pattern Medium Duty 4 piston Drag Racing Front Brake Kit (Reusing Factory Modified Hubs) 001-0291-1

Medium Duty Drag Racing brake kits are the latest release from TBM brakes in its drag racing line. These brakes are the perfect balance of lightweight brakes with incredible stopping power that are up to the task of stopping heavier cars as well as high demand/high heat applications such as stock/super stock and bracket racing vehicles that do not tend to use a parachute and utilize the brakes more than a typical heads up car or vehicle that uses the parachute every pass. Thanks to a 1/2" thick Revolution rotor and F3 4 piston no drag technology caliper, these brakes are up to the task for the most extreme uses in drag racing!

Instructions - CLICK HERE

Brake Lines: 99-06 Click Here / 07-19 & 21-24 Click Here

Please note this kit is designed to work with factory hubs which are modified and redrilled for 5x4.75" OR 5x5" lug pattern

Note: These only work with 17" or larger wheels

This kit fits the following:

• 1999-2018 Chevy Silverado 2WD

• 1999-2018 GMC Sierra 2WD

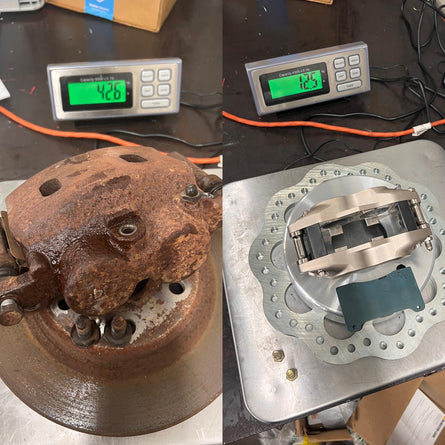

Weight: 12.5lbs per side or 25 lbs overall. This kit saves 60 lbs over factory disc brakes (both sides).

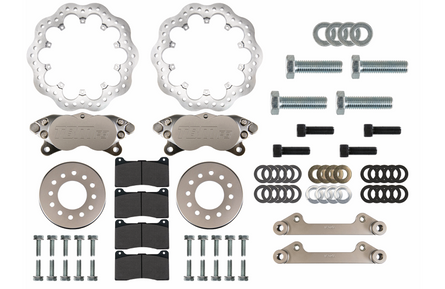

Kit includes:

• F3 4 piston calipers 002-0192SSP-1 / 002-0192SSP-2
• #1 compound low temp track pads 6-0102W
• (2) 12.50 x .500” thermally treated revolution rotors 3-1250500107963D
• (2) Aluminum rotor hats 204-0226-5
• (2) Aluminum caliper mounting bracket 16-0226
• Hardware kit

⚠ WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Installation of this kit will require 3AN lines that are sold separately

Kit Weight 25.9 LBS

We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.

*Please use red Loctite on all rotor bolts*
