1993-02 4th Gen Camaro / Firebird Medium Duty W/ Spindle Pin and Aluminum  Hub, F3 4 Piston caliper, Front Drag Brake Kit 003-0337-1

Medium Duty Drag Racing brake kits are the latest release from TBM brakes in its drag racing line. These brakes are the perfect balance of lightweight brakes with incredible stopping power that are up to the task of stopping heavier cars as well as high demand/high heat applications such as stock/super stock and bracket racing vehicles that do not tend to use a parachute and utilize the brakes more than a typical heads up car or vehicle that uses the parachute every pass. Thanks to a .350" thick Revolution rotor and F3 4 piston no drag technology caliper, these brakes are up to the task for the most extreme uses in drag racing!

Instructions: Click Here

TBM Total Brake Kit Weight:

15.75lbs per side with spindle pin Or 13lbs per side for brake kit alone

Delivering best in class stopping power for the demanding heavy and fast 4th Gen Camaro / Firebirds while being among the lightest thanks to our Revolution Rotor and F3 4 piston caliper. Our Medium Duty TBM brake kit combines decades of technology developed in the highest forms of racing to perform on your vehicle!

F3 Caliper: This is the strongest 4 piston drag racing caliper available. A stronger caliper provides higher clamping force and less distortion so that your pedal force and pressure translates to better braking and less flex. Our unique no drag design means the pistons retract around .020 when you let off the pedal to insure no drag which improves ET / chassis performance and results in longer pad life

Revolution Rotor: This Unique design rotor has been imitated but not duplicated. Our unique steel alloy is designed with braking and long life in mind. Featuring a multi process manufacturing technique, this rotor is designed to be more durable, flatter, lighter, and avoid warping better than any single thickness rotor on the market.

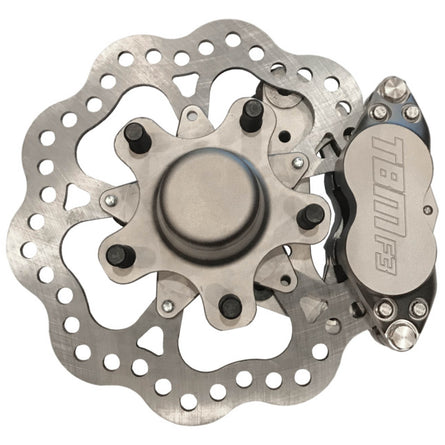

Included in this kit:

• F3 4 piston calipers 002-056SSP-1 / 002-0056SSP-2

• #1 compound standard track pads 6-0102W

• 10.75 x .345 steel revolution rotors 3-1075345525

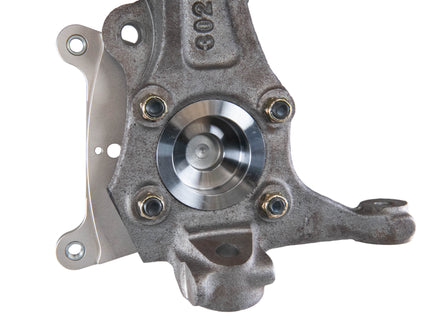

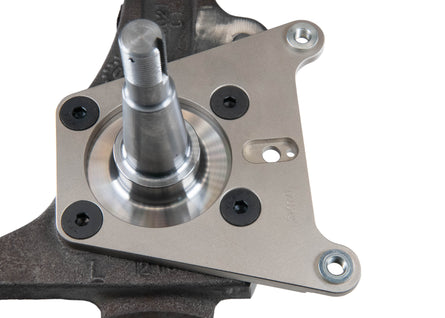

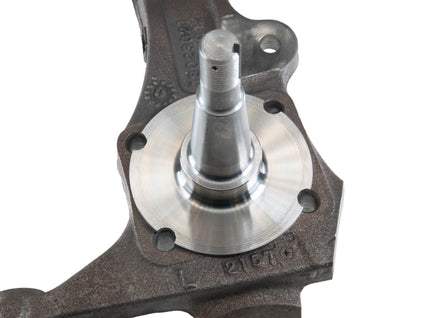

• Steel Spindle Pins
• Aluminum 5 on 4.75 hubs 8-0103
• Aluminum caliper mounting brackets 17-0045

Made in the USA!

Installation of this kit will require 3AN lines that are sold separately

*Please use red loctite on all rotor bolts*

We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.

Note: This Kit retains usage of factory ABS functionality, however, we do not recommend utilizing ABS braking functionality with racing brakes as it may cause unpredictable or negative effects on braking performance that can cause inadequate braking and premature pad/rotor wear.

This kit fits the following:

• 1993-02 Camaro (All Models)
• 1993-02 Firebird / Trans Am / Firehawk (All Models)
