Kit includes:
- DR1 2 piston calipers 002-044SSP-1 / 002-044SSP-2
- #1 Standard F1 Pads 6-1019
- 10.35 x .280” Top-Fuel Steel Rotors 3-103531255590D
- Aluminum rotor hats 205-0017
- Aluminum caliper mounting brackets 17-0117
- Mounting hardware kit 011-0370
1992-2001 Honda/Acura (GSR & Hub City Knuckle) Drag Racing Rear Brake Kit
SALE
TBM Brakes
001-0362
Racing Use Only, Not Legal for Road Use
$1,199.00
Please select all options
1992-2001 Honda/Acura (GSR & Hub City Knuckle) Drag Racing Rear Brake Kit (Reusing Factory Hubs)
Instructions: Coming Soon
Brake Lines: Coming Soon

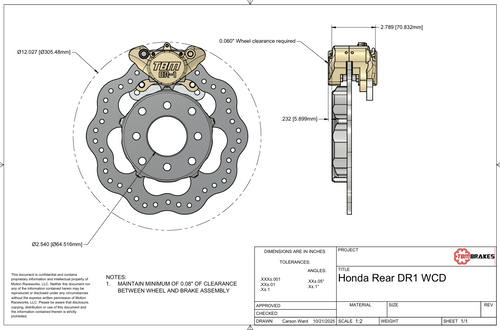

1992-2001 Honda/Acura GSR Drag Racing Rear Brake Kit is extremely lightweight and designed to fit most 13in beadlock wheels. Check fitment drawing below.
*NOTE* Caliper overhangs rotor hat by .232". When running Beadlock rear wheels make sure you have a minimum of .060" clearance to the caliper. Depending on the brand of wheel you may need to trim bolts (protruding) that holds the face of the wheel on.
Total Kit Weight: 13 lbs (6.5lbs per side)
Note: Do not exceed 1200psi of brake pressure, doing so can cause brake caliper to be damaged. If you need help figuring out your brake pressure based on your master cylinder sizing and pedal ratio please give us a call.
Kit fits the following:
- 1992-2001 GSR Knuckle Honda
- 1992-2001 GSR Knuckle Acura
- Hub City AWD Trailing Arm Kit
4x100 Bolt Pattern M12 Stud Holes
4x114.3 Bolt Pattern M12 Stud Holes
Note: Brake Lines Not Included
We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.
