Why Brake Master Cylinder Sizing Is So Important
When it comes to building a high-performance braking system, people tend to focus on the “flashy” components, big brake, multi piston calipers, slotted rotors, etc. But one of the most overlooked (yet absolutely critical) parts of the system is the brake master cylinder. Getting the right master cylinder bore size can make or break your setup. Literally.
Let’s break down why master cylinder sizing matters and how it affects pedal feel, pedal travel, brake pressure, and overall braking performance.
What Does a Master Cylinder Do?

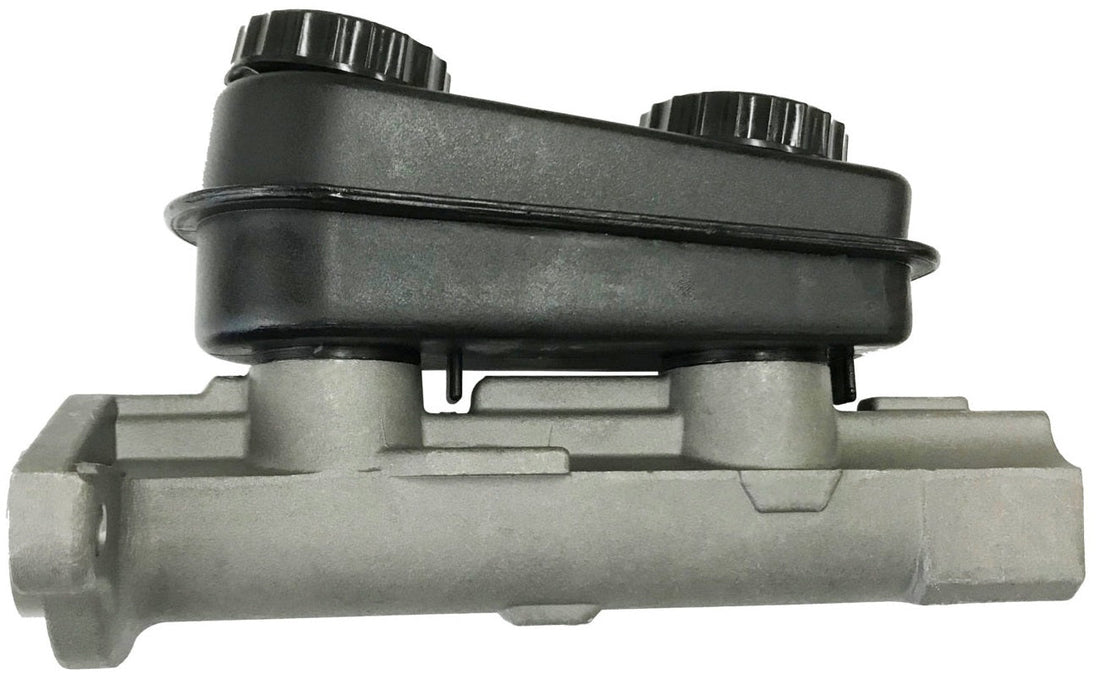

The master cylinder is the heart of the brake hydraulic system. When you press the brake pedal, the master cylinder converts that mechanical force into hydraulic pressure, sending fluid through the lines to actuate the calipers. The bore size of the master cylinder directly impacts how much pressure and fluid volume is delivered to the calipers.
The Relationship Between Bore Size and Brake Pressure
This is the foundation of it all:
- Smaller bore master cylinders generate more pressure with less pedal force but displace less fluid volume
- Larger bore master cylinders move more fluid volume but require more pedal force to achieve the same pressure
This tradeoff is crucial when pairing a master cylinder with a specific set of calipers.
Simple formula:
Pressure = Force / Area
Smaller bore means smaller piston area and higher pressure per unit of force
Larger bore means larger piston area and lower pressure per unit of force
Pedal Feel: Soft vs. Firm
Master cylinder sizing heavily influences pedal feel, which is what the driver experiences when pressing the brake pedal.
- Undersized master cylinder: Pedal feels soft or spongy because you're building high pressure with low effort but not moving enough fluid to fully engage the calipers quickly
- Oversized master cylinder: Pedal feels very firm, often too firm because you're moving a lot of fluid but not building pressure efficiently
Getting the right balance here is essential for driver confidence and control especially on the track.
Pedal Travel: Short vs. Long
Master cylinder sizing also affects how far the pedal must travel before braking occurs:
- Smaller bore: Longer pedal travel. Since you're displacing less fluid per inch of pedal movement it takes longer to build pressure
- Larger bore: Shorter pedal travel. More fluid is displaced quickly so engagement is more immediate
But here's the trap, short pedal travel doesn’t always mean better braking. If the master is too large for your calipers you may not be building enough pressure for effective clamping.
Why Matching to Calipers Is Critical
Brake calipers vary in piston size and number. Calipers with large pistons or multiple pistons require more fluid volume to move and more pressure to clamp effectively.
If you mismatch the master and calipers:
- Too small a master for big calipers → long travel, mushy pedal, underwhelming braking
- Too large a master for small calipers → rock hard pedal, low pressure, poor modulation
The goal is to balance volume and pressure. You want a master cylinder that can push enough fluid to move the caliper pistons but not so large that it reduces brake line pressure to the point of poor performance.
Other Factors That Influence Sizing
- Brake boosters: Vacuum or hydraulic brake booster multiply pedal force. If you’re running manual brakes (no booster) you’ll need a smaller bore for decent pressure
- Pedal ratio: The mechanical leverage between the pedal and master cylinder plays into total output. A higher ratio gives more leverage like using a longer wrench
- Front vs. rear split: Dual master setups or adjustable bias systems allow for different bore sizes front and rear. Matching them to the respective caliper sizes is key to stable braking balance
Final Thoughts
The master cylinder is the unsung hero of your braking system. Whether you're building a manual brake drag car, a corner carving autocross, or a daily driver with upgraded brakes, master cylinder sizing must be matched to your calipers, pedal setup, and driving style.
If you're unsure what size is right for your vehicle, please give us a call at (800)878-9274) or email us at Sales@TBMBrakes.com and we will be more than happy to get help you pick the correct master cylinder size for your application
